安裝彈簧減震器需要注意哪些事項？
安裝彈簧減震器需要注意哪些事項？
What should I pay attention to when installing spring shock absorber?

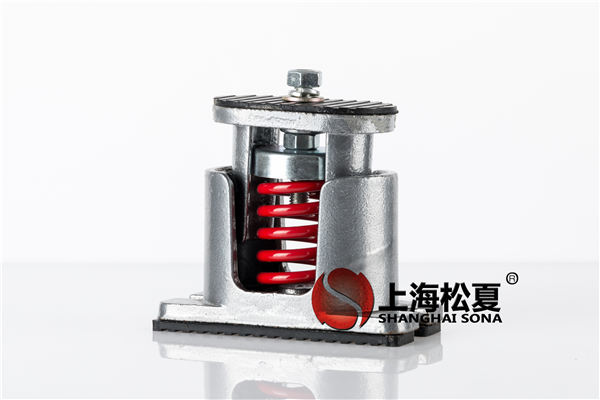

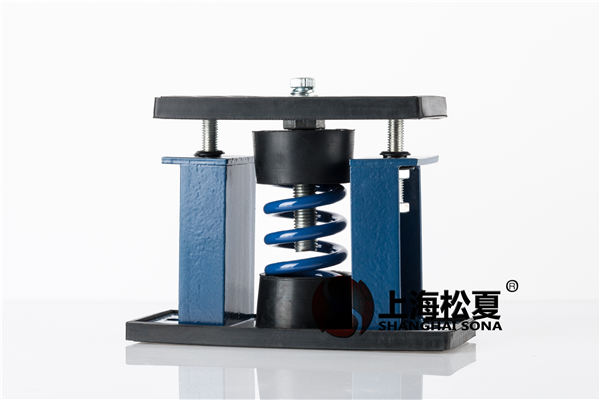

1.自立式彈簧減震器規范(主要用于抽水機、風機、主機等機器設備，合適慣性臺座運用)
1. Specification for self-supporting spring shock absorbers (mainly used for pumps, fans, mainframes and other machinery and equipment, suitable for inertial pedestals)
2.彈簧型隔震器均為無外殼自立式，底板和基座間應配有6毫米厚之氯丁橡膠消聲防滑墊片。
2. All spring-type isolators are self-supporting without shell, and 6mm-thick neoprene silenced non-slip gaskets shall be provided between the base plate and the base.
3.整個隔震器均須配有堅固栓接在設備上的水平調校螺釘。
3. The entire isolator shall be provided with a horizontal setting screw firmly bolted to the equipment.
4.彈簧的橫向硬度不可以以小于其定額垂直硬度的80%。
4. The lateral hardness of the spring may not be less than 80% of its fixed vertical hardness.
5.彈簧的隔震幅度須能足夠負擔50%之另外負荷。
5. The isolation amplitude of the spring shall be sufficient to bear an additional load of 50%.
